The 4 sound effect using UM3561
Figure 1 The circuit diagram of The 4 sound effect using UM3561
Then a choosing sound at appear at output will can select with the connecting of both pin SEL1 (pin 6) and pin SEL2 (pin 1) either pin to to positive or negative or all release.
1. If release pin 1 and pin 6 quietly the IC will emit the Police car sirens.
2. If we connect pin 1 (SEL2) to positive voltage (4th position) will get the Space Machine Gun Sound effect.
3. If pin 6 (SEL1) is connected to the positive (position 2) we will hear the fire truck siren.
4. But pin 6 is connected to negative voltage (position 3) will will hear the Ambulance sirens.
In selecting will connect either pin SEL1 or SEL2 only. When we selected pin SEL1 or ???? SEL2 then the controller circuit inside IC will send signal to control and command counter circuit to identify the location of data in memory. While sending data to the audio generator circuit. To make Tone of according to the data being recorded.
The tone will be sent to pin 3 of IC1 , then it will be increased by both transistors Q1 and Q2 through R2. Which serves to limit current bias both transistor, the signal strength to be able to output sound to the speakers. Or If this sounds like a lot, It can be connected signal from pin 3 of IC1 goes into a high-gain amplifier circuit as needed.
How to build.

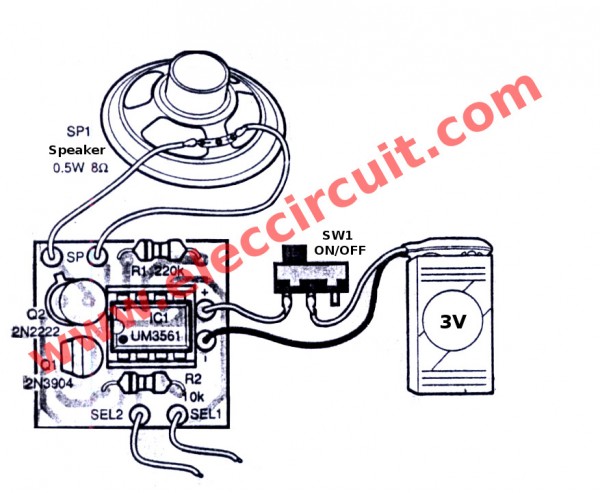

This project we can assemble them on the perforated board as Figure 2 because there are a few parts.
Figure 2 the component layout and wiring of 4 sound effect.

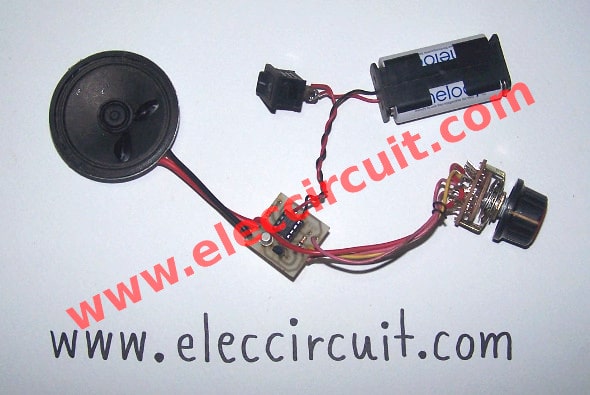

Figure 3 The project successfully been installed on the PCB.

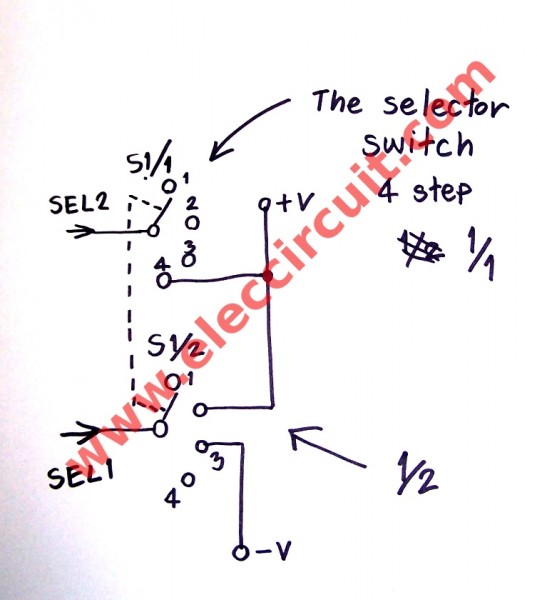

I use a selector switch for select the sound output by I connecting wire as Figure 4
Figure 4 wiring the selector switch make we easy to choose tone output.
Applications
We can apply two AA 1.5 volts battery to supply of this circuit. If everything is OK Would have heard the Police car sirens out for sure. Then Then try the wires of lead SEL1 or SEL2,neither leg touches the positive, can signal one another.
Or can be modified in a theft or a kids toy. It does not rule any
As video below or Figure 5 is testing the projects
The part list.
Resistors 1/4W 5%
R1_________220K
R2_________10K
Semiconductors
Q1_________2N3904___NPN – transistor 0.5A 40V
Q2_________2N2222___NPN - transistor 0.8A 40V
IC1_________UM3561
Others
S1___Slide switch 3 lead.
S2___Selector switch 4 step.
Speaker 8 ohm 0.5W.
9 volts battery and snap connecter.
↧
↧
Cricket voice with buzzer using LM324
Figure 1 is the circuit diagram of the Cricket voice with buzzer
IC1 / 2 generate frequency of about 50Hz. This frequency depends on R8 and C2. Which it serves to control IC1 / 1. To give a voice tone similar to the sound of crickets.
IC1 / 3 generate frequency of about 2.2Hz. This frequency depends on R13 and C3.This frequency to control the IC1 / 1. To sound frequencies for a cricket singing then stop.
Therefore, the sound of crickets is a tone generator circuit 3 sets. Which sends out pin 1 of IC1 / 1 R5 to pass on TR1 amplifier to the speaker on.
How to builds
This projects you can assemble all parts on the perforated board or universal PCB board. As Figure 2 is the components layout and wiring of this projects. And as Figure 3 is a project that I assembled on PCB and success to the next test.
Figure 2 the components layout and wiring
Figure 3 is the complete projects on PCB.
Testing
To apply a 9 volts battery to point “9V” LED lights are bright start - off at rhythmic. The range of LED lights and can be noisy as well. To adjust to the sounds of crickets, high or low, it can be adjusted to VR100K.
As video below is testing this project.
The part list
R1, R2, R7, R8, R10, R11, R15____10K
R3, R9, R12___________________5K
R4__________________________3K
R5, R6, R14___________________1K
R13_________________________47K
TRIMMER POTENTIOMETER
VR1_____________100K (104 code)
CERAMIC CAPACITOR
C1_______________0.0033uF (on 332 code)
ELECTROLYTIC CAPACITORS
C2______________1uF 50V
C3______________4.7uF 50V
TRANSISTORs
TR1_____________2SC458 or 2SC828, 2SC1815, 2SC945
DIODES
D1, D2___________1N4148___75V 150mA Diodes
IC
IC1______________LM324 Quad/ 1MHz/ Operational Amplifiers for Commercial/ Industrial/ and Military Applications
